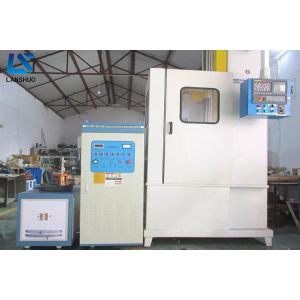

Welded Structure Shaft CNC Induction Quenching Machine With Work Table System

Ask Lasest Price
Brand Name :	Lanshuo
Model Number :	LCN-1500
Certification :	CE
Price :	USD 2000-10000 / set
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000 sets per year
Delivery Time :	7-15 working days after deposit

Add to Cart

Product Details
Company Profile

Welded Structure Shaft CNC Induction Quenching Machine With Work Table System

LCN-1500 CNC Induction Shaft Quenching Machine Tool Price for Sale

1. Main technical parameters of LSN series CNC induction quenching machine tools

Model	LSN-2000	LSN-1500	LSN-1000	LSN-600
Max lengths of the clamping parts(mm)	2050	1250	1050	650
Max length of quenching parts(mm)	2000	1200	1000	600
The largest diameter quenching parts(mm)	600	600	600	600
The largest total quenching parts (Kg)	150	150	150	150
Spindle rotation speed (rps)	0-200	0-200	0-200	0-200
Workpieces moving speed ( mm/s)	1-60	1-60	1-60	1-60
Mobile positioning accuracy (mm)	±0.1	±0.1	±0.1	±0.1

2. Advantages of Our CNC Hardening Machine Tool:
1. The machine adopts IGBT modules (, Germany), high efficiency, energy saving.
2. Environmental. Almost no oxide layer, produced no exhaust, no waste-water is generated.
3. Heating fast and uniform.
4. A unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
5. Easy installation, simple operation.
6. Safe and reliable. No high voltage, very safe for operating people.
7. Machine power can be adjust step-less.
8. It has complete self-protect functions: such as many types of alarm lamps: over-current, over-voltage, over hot, water shortage etc, can also control and protect itself.
3. Applications of Our CNC Hardening Machine Tool:
Shaft: Single heating spray hardening, segmental single heating spray hardening, continuous heating spray hardening, segmental continuous heating spray hardening.
Gear: Overall single heating spray hardening, single tooth single heating spray hardening, single tooth continuous heating spray hardening.
Disc-type workpiece:Overall single heating spray hardening, circumferential surface continuous heating spray hardening.

4. Main features of the induction quenching machine

1. Lathe: adopt welded structure with good rust-proof functions.
2. Top adjustment parts: adopt electric adjustment to realize clamping of different length work pieces.
3. Work table system: adopt ball screw and servo motor to drive, light driving, high guide precision and accurate positioning.
4. Main shaft rotation system: adopt variable frequency regulating to realize parts rotation speed continuous adjusted.
5. Electric control part: the machine tool has power-loosing protection function. Safe and reliable.
6. Frame: made by thick steel plates, with window and sliding doors, prevent water splash, easy to load parts and monitor hardening process.
5. Package of induction Quenching Machine:

As for packaging:
1. Machine is always wrapped with a film layer, and then packed with a paper box.
2. Then put the wrapped machine into a wooden case(standard exporting case), and wrap the machine with foam around.

As for shipping:
1. If you have a shipper in China around, we can send the machine directly to him freely.
2. If you want us to send the machine to you directly, we can send the machine to any main port of China promptly.

6. Company Brief Introduction :
LSW-80 High Frequency Induction Quenching Hardening Machine Price

1. 12-year experience in designing and manufacturing of high frequency and medium frequency induction heating machines. We have strict QC system. Products have won great reputation among clients.
2. Leading products include IGBT medium frequency heating equipment, IGBT super audio heating equipment, CNC quenching machine tool, closed cooling tower, etc. Products are widely applied to induction heating, forging, melting, hardening/ quenching, annealing, normalizing, tempering, brazing/welding/soldering, ect.
3. CE certificate.
4. OEM& ODM available.
5. Products have been exported to UK, Australia, Pakistan, Ukraine, Uzbekistan, Russia, Turkey, South Korea, Malaysia and other country.

7. Customer Center:
LSW-80 High Frequency Induction Quenching Hardening Machine Price
8. Canton Fair and Vietnam Machinery Exhibition

9. Trade Process:

10. Our Service

1. Pre-sale Service
If you don't know what type of machine you should choose, Please contact us through email, phone.
We will recommend the suitable machine according to your requirements.
2. Sale Service
After choosing the suitable machine, we will discuss the details, such as payment method(TT, L/C), delivery date, transportation, etc. During the production, you are welcome to visit our factory.
3.After Sales Service

Free training installation
If necessary, we can also arrange for technicians to go abroad for installation
7*24 hour service
